Kitaco
P/N: 350-1123201
Check the title for fitment — that is how this catalogue is organised.

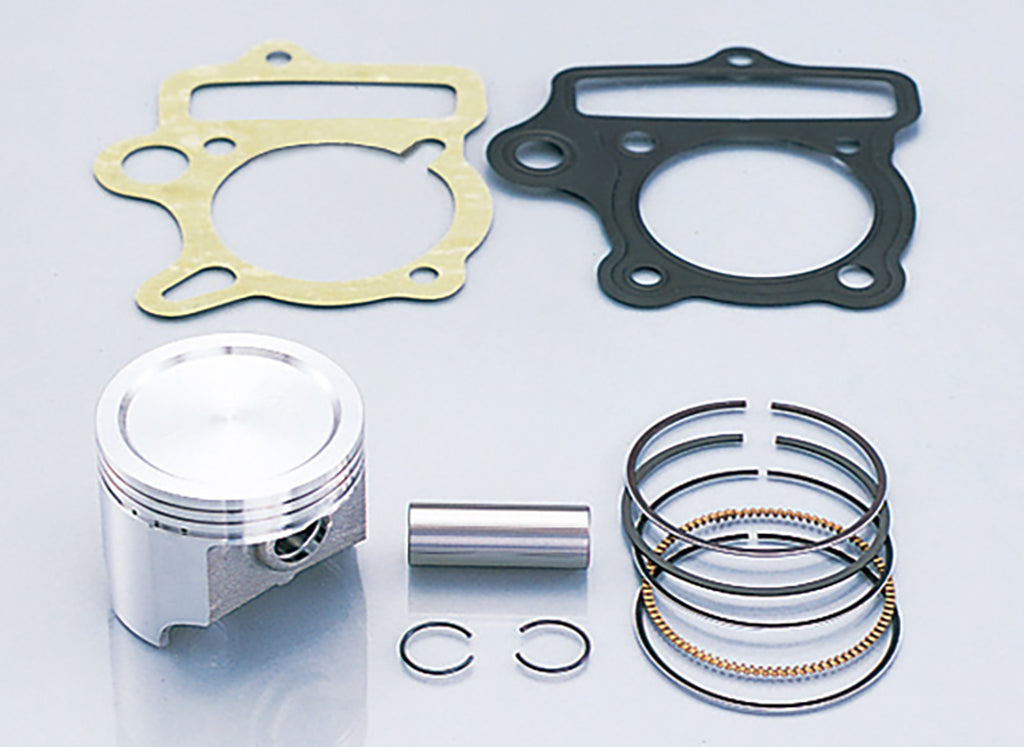

Flat top piston kit compatible with the Kitaco light 88cc 6V kit.
REPLACEMENT PISTON KIT FO RLIGHT BIG BORE KIT
※MAKE SURE OF CORRECT APPLICATION BEFORE PURCHASE.
※CURRENT 85/88cc PISTON IS 0.8-0.8-1.5 PISTON RING TYPE （75cc IS 1.0-1.0-2.0 PISTN RING）
※0.8-0.8-1.5 RING TYPE HAS "R" STAMP ON TOP OF PISTON.
●KITACO BIG BORE KIT
LIGHT 88cc F(APPLICATION A)

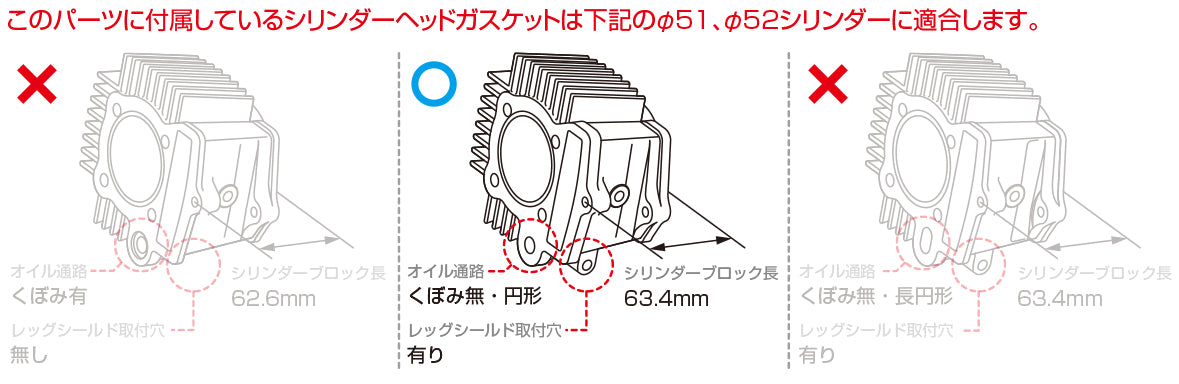

●FOR CYLINDER WITH OIL PASSAGE CIRCLE HOLE WITH 63.4MM LONG CYLINDERS.
※CYLINDERS WITH OVAL OIL PASSAGE CAN NOT BE USABLE.
Genuine Honda Part
P/N: 94601-13000
Pattern OR Aftermarket part
P/N: 06131-036-020P
Z50R note: According to Honda this piston is compatible with Z50R 1979, however it can also be fitted to 1980-1981 models.
Genuine Honda Part
P/N: 13010-087-023
Genuine Honda Part
P/N: 13010-036-014
Z50R note: This piston ring set is compatible with Z50R made between 1979 - 1981.
Sold outPattern OR Aftermarket part
P/N: 131A0-087-305P
Genuine Honda Part
P/N: 13111-GB2-000
Compatible with 39mm piston (50cc engines).
Genuine Honda Part
P/N: 13111-GB0-910
Genuine Honda Part
P/N: 13101-087-712
Genuine Honda Part (NEW OLD STOCK)
P/N: 13101-036-010
Z50R note: According to Honda this piston is compatible with Z50R 1979, however it can also be fitted to 1980-1981 models.
Genuine Honda Part
P/N: 13101-GB2-010
Z50R note: This piston is compatible with Z50R made between 1982 - 1987.
Takegawa
P/N: 08-01-0087
Approximate width: 105mm Approximate hight: 74mm
Genuine Honda Part
P/N: 13101-124-831
Z50R note: This piston is compatible with Z50R made between 1980 - 1981.
