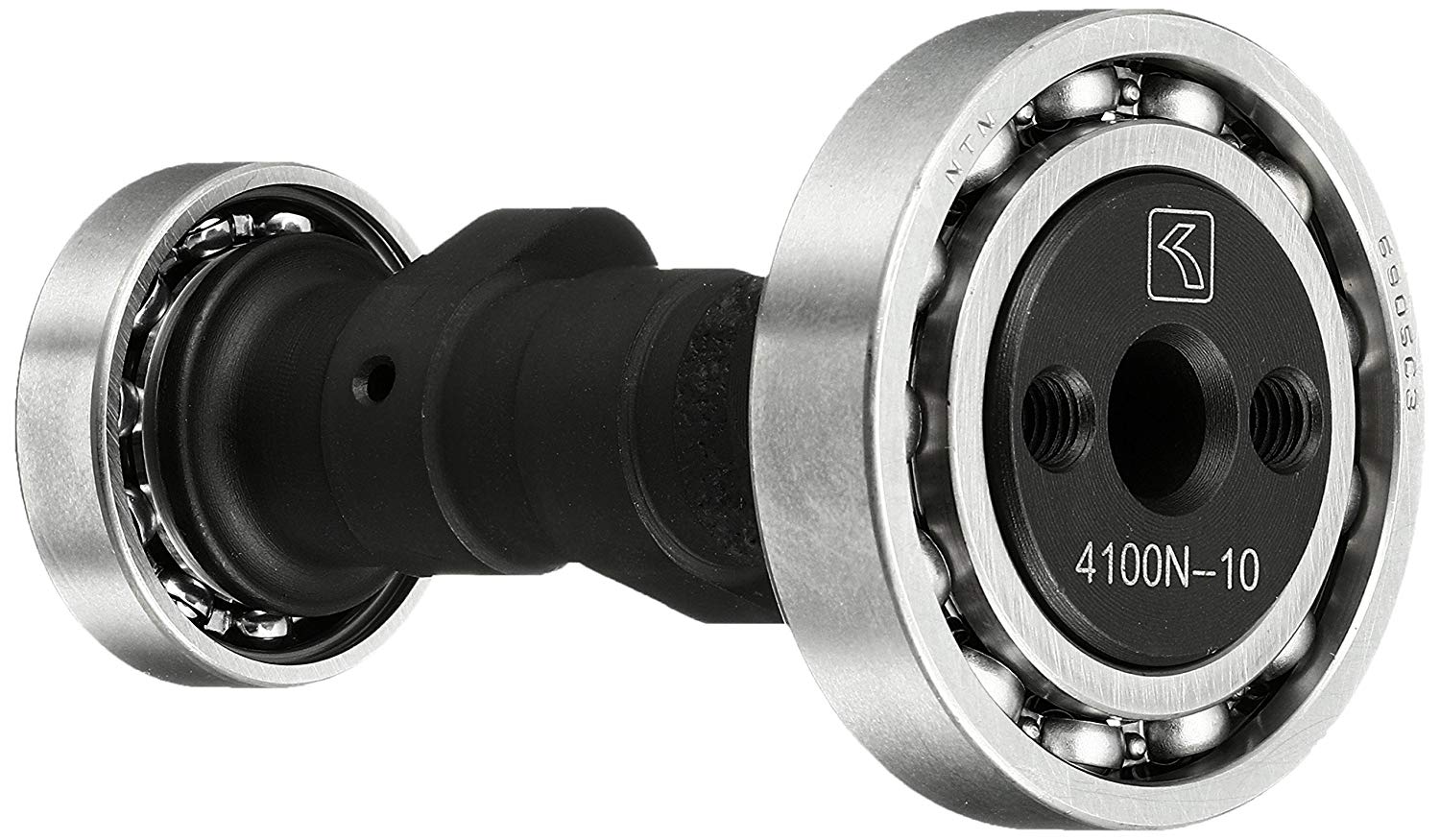

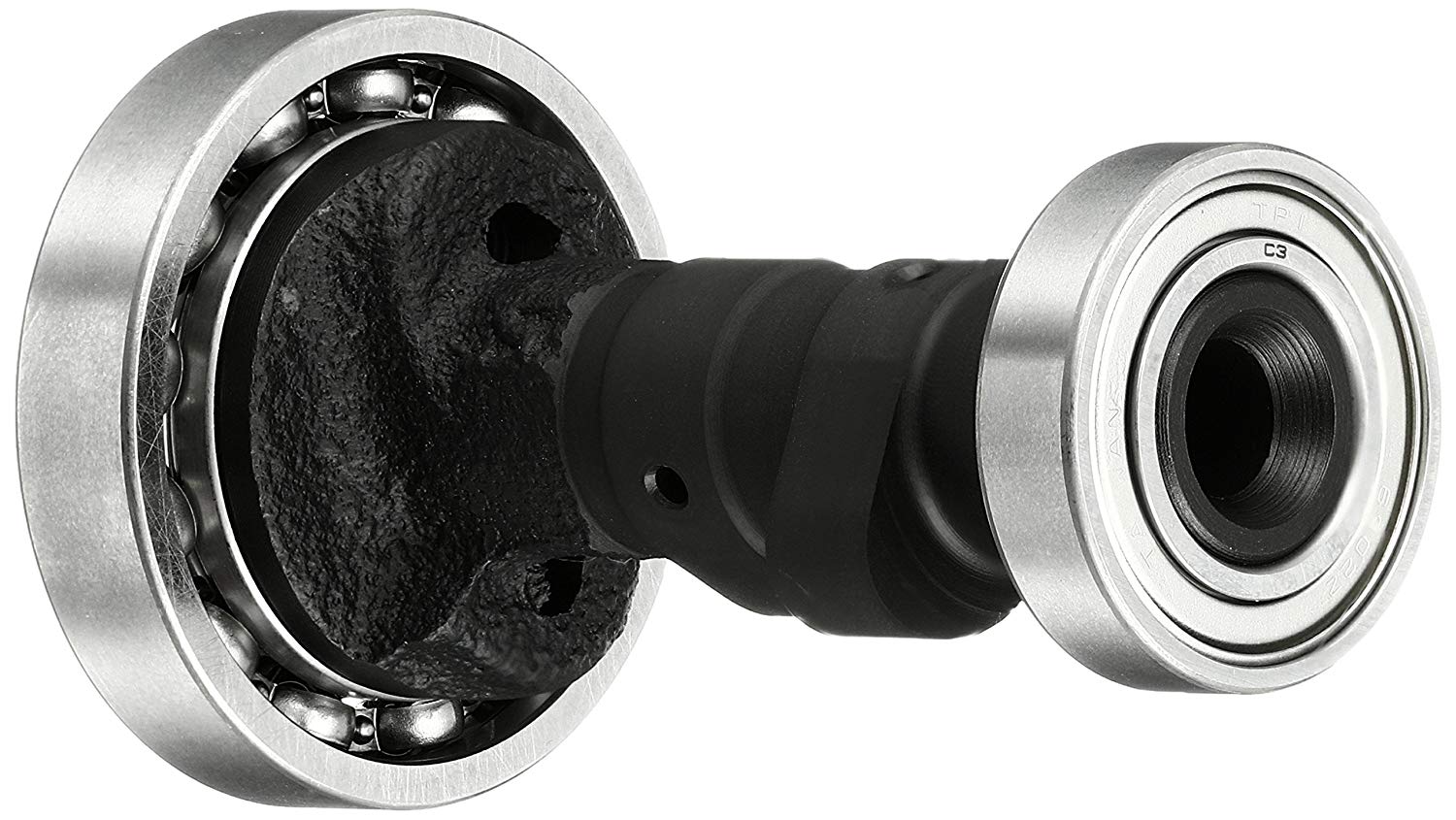

Kitaco High Lift Fast Road Camshaft suitable for use with Z50J 12V, Dax 12V, XR50, CRF50

Kitaco

Kitaco High Lift Fast Road Camshaft suitable for use with Z50J 12V, Dax 12V, XR50, CRF50

P/N: 300-1083100

£69.60 inc VAT £58.00 ex VAT Only UK customers pay UK VAT (20%). Orders to the Channel Islands and outside the UK are charged without UK VAT. Import VAT or duty may apply in your country.

Check the title for fitment — that is how this catalogue is organised.

  • Produces more power mid-range and a higher rev range!
  • Please make sure you adjust your carburettor accordingly when fitting this part
  • Compatible with standard Honda 12V roller bearing heads only.
  • VALVE TIMING ANGLE
    　 (ULTRA CYLINDER HEAD)
    　　IN VALVE 　OPEN　12°BTDC
    　　CLOSE　38°ABDC
    　　EX VALVE 　OPEN　50°BBDC
    　　CLOSE　9°ATDC
  • VALVE TIMING ANGLE
    　 (NEW STD CYLINDER HEAD)
    　　IN VALVE 　OPEN　5°BTDC
    　　CLOSE　45°ABDC
    　　EX VALVE 　OPEN　45°BBDC
    　　CLOSE　15°ATDC
    DURING 1 mm LIFT-UP

Compatibility

Listed for these bikes

Always check the product text for any further compatibility criteria.

Honda Z50J 12V Z50J 12V Honda Dax 12V ST50 ST70 Dax 12V
