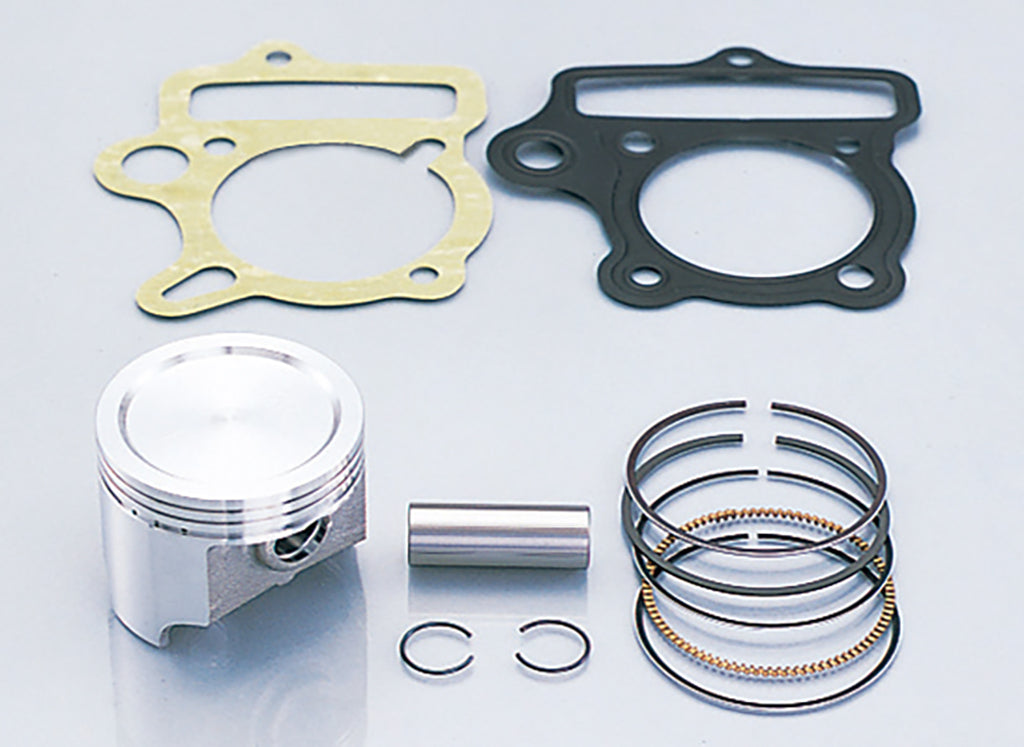

NOS Kitaco 52mm 88cc LIGHT Piston & Rings Set suitable for use with Z50J 12V, Dax 12V

Kitaco

NOS Kitaco 52mm 88cc LIGHT Piston & Rings Set suitable for use with Z50J 12V, Dax 12V

P/N: 350-1123301

£78.00 inc VAT £65.00 ex VAT Only UK customers pay UK VAT (20%). Orders to the Channel Islands and outside the UK are charged without UK VAT. Import VAT or duty may apply in your country.

In stock

Check the title for fitment — that is how this catalogue is organised.

Compatible with the following cylinder heads:
  • HONDA 12V 50CC CLYINDER HEAD

Flat top piston kit compatible with the Kitaco light 88cc 12V kit.

REPLACEMENT PISTON KIT FO RLIGHT BIG BORE KIT
※MAKE SURE OF CORRECT APPLICATION BEFORE PURCHASE.
※CURRENT 85/88cc PISTON IS 0.8-0.8-1.5 PISTON RING TYPE （75cc IS 1.0-1.0-2.0 PISTN RING）
※0.8-0.8-1.5 RING TYPE HAS "R" STAMP ON TOP OF PISTON.

●KITACO BIG BORE KIT
LIGHT 88cc(APPLICATION B/C)

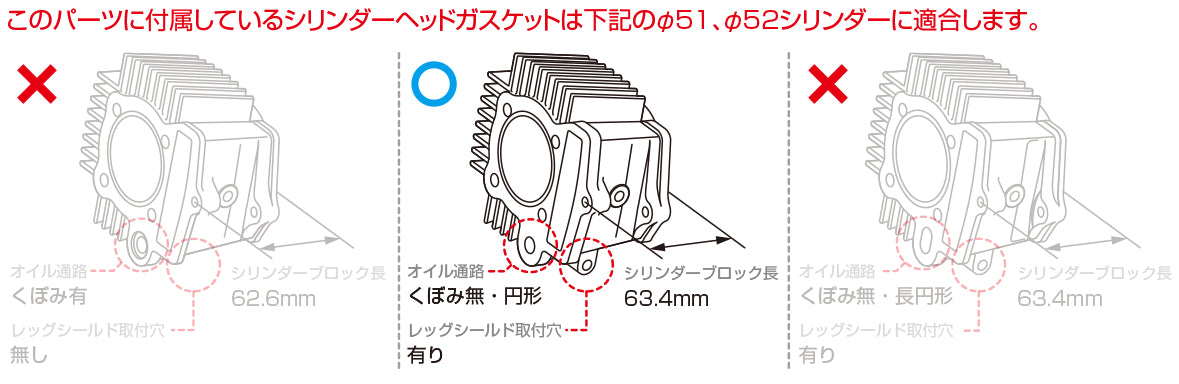

●FOR CYLINDER WITH OIL PASSAGE CIRCLE HOLE WITH 63.4MM LONG CYLINDERS.
※CYLINDERS WITH OVAL OIL PASSAGE CAN NOT BE USABLE.

Related parts

Honda Piston Circlips (Pair) suitable for use with CZ100, P50, Z50A, Z50J1, Z50R, Z50J, Dax 6V, Dax 12V, Chaly 6V, C90E

Genuine Honda Part More often than not, this part will arrive in the original Honda packaging. Sometimes we receive these Honda parts in multi-packs, and in those cases it's not always possible to send the original Honda packaging.

Honda Piston Circlips (Pair) suitable for use with CZ100, P50, Z50A, Z50J1, Z50R, Z50J, Dax 6V, Dax 12V, Chaly 6V, C90E

P/N: 94601-13000

In stock

£2.52 inc VAT £2.10 ex VAT Only UK customers pay UK VAT (20%). Orders to the Channel Islands and outside the UK are charged without UK VAT. Import VAT or duty may apply in your country.
Reproduction 39mm (Standard Size) Piston & Rings Set suitable for use with Z50M, Z50A, Z50R (79-81), Z50J1, Dax ST50 6V, Chaly CF50 6V

Pattern OR Aftermarket part

Reproduction 39mm (Standard Size) Piston & Rings Set suitable for use with Z50M, Z50A, Z50R (79-81), Z50J1, Dax ST50 6V, Chaly CF50 6V

P/N: 06131-036-020P

In stock

Z50R note: According to Honda this piston is compatible with Z50R 1979, however it can also be fitted to 1980-1981 models.

£37.20 inc VAT £31.00 ex VAT Only UK customers pay UK VAT (20%). Orders to the Channel Islands and outside the UK are charged without UK VAT. Import VAT or duty may apply in your country.
Honda 47mm (Standard Size) Piston Rings suitable for use with Dax ST70 6V, Chaly CF70 6V

Genuine Honda Part More often than not, this part will arrive in the original Honda packaging. Sometimes we receive these Honda parts in multi-packs, and in those cases it's not always possible to send the original Honda packaging.

Honda 47mm (Standard Size) Piston Rings suitable for use with Dax ST70 6V, Chaly CF70 6V

P/N: 13010-087-023

In stock

£38.40 inc VAT £32.00 ex VAT Only UK customers pay UK VAT (20%). Orders to the Channel Islands and outside the UK are charged without UK VAT. Import VAT or duty may apply in your country.
Honda 39mm (Standard Size) Piston Rings suitable for use with Z50M, Z50A, Z50J1, Z50R (79 - 81), Z50J 6V, Dax ST50 6V, Chaly CF50 6V

Genuine Honda Part More often than not, this part will arrive in the original Honda packaging. Sometimes we receive these Honda parts in multi-packs, and in those cases it's not always possible to send the original Honda packaging.

Honda 39mm (Standard Size) Piston Rings suitable for use with Z50M, Z50A, Z50J1, Z50R (79 - 81), Z50J 6V, Dax ST50 6V, Chaly CF50 6V

P/N: 13010-036-014

In stock

Z50R note: This piston ring set is compatible with Z50R made between 1979 - 1981.

£50.40 inc VAT £42.00 ex VAT Only UK customers pay UK VAT (20%). Orders to the Channel Islands and outside the UK are charged without UK VAT. Import VAT or duty may apply in your country.
Honda Gudgeon Pin for 39mm Piston suitable for use with Z50M, Z50A, Z50J1, Z50R, Z50J, Dax ST50 6V, Chaly CF50 6V, Dax ST50 12V

Genuine Honda Part More often than not, this part will arrive in the original Honda packaging. Sometimes we receive these Honda parts in multi-packs, and in those cases it's not always possible to send the original Honda packaging.

Honda Gudgeon Pin for 39mm Piston suitable for use with Z50M, Z50A, Z50J1, Z50R, Z50J, Dax ST50 6V, Chaly CF50 6V, Dax ST50 12V

P/N: 13111-GB2-000

In stock

Compatible with 39mm piston (50cc engines).

£5.04 inc VAT £4.20 ex VAT Only UK customers pay UK VAT (20%). Orders to the Channel Islands and outside the UK are charged without UK VAT. Import VAT or duty may apply in your country.
Honda Gudgeon Pin for 47mm Piston suitable for use with Dax ST70 6V, Chaly CF70 6V, C90E

Genuine Honda Part More often than not, this part will arrive in the original Honda packaging. Sometimes we receive these Honda parts in multi-packs, and in those cases it's not always possible to send the original Honda packaging.

Honda Gudgeon Pin for 47mm Piston suitable for use with Dax ST70 6V, Chaly CF70 6V, C90E

P/N: 13111-GB0-910

In stock

£9.60 inc VAT £8.00 ex VAT Only UK customers pay UK VAT (20%). Orders to the Channel Islands and outside the UK are charged without UK VAT. Import VAT or duty may apply in your country.
Honda 47mm (Standard Size) Piston suitable for use with Dax ST70 6V, Chaly CF70 6V

Genuine Honda Part More often than not, this part will arrive in the original Honda packaging. Sometimes we receive these Honda parts in multi-packs, and in those cases it's not always possible to send the original Honda packaging.

Honda 47mm (Standard Size) Piston suitable for use with Dax ST70 6V, Chaly CF70 6V

P/N: 13101-087-712

In stock

£46.80 inc VAT £39.00 ex VAT Only UK customers pay UK VAT (20%). Orders to the Channel Islands and outside the UK are charged without UK VAT. Import VAT or duty may apply in your country.
NOS Honda 39mm (Standard Size) Piston suitable for use with Z50M, Z50A, Z50J1, Z50R (79-81), Z50J 6V, Dax ST50 6V, Chaly CF50 6V

Genuine Honda Part (NEW OLD STOCK) More often than not, this part will arrive in the original Honda packaging. Sometimes we receive these Honda parts in multi-packs, and in those cases it's not always possible to send the original Honda packaging.

NOS Honda 39mm (Standard Size) Piston suitable for use with Z50M, Z50A, Z50J1, Z50R (79-81), Z50J 6V, Dax ST50 6V, Chaly CF50 6V

P/N: 13101-036-010

In stock

Z50R note: According to Honda this piston is compatible with Z50R 1979, however it can also be fitted to 1980-1981 models.

£42.00 inc VAT £35.00 ex VAT Only UK customers pay UK VAT (20%). Orders to the Channel Islands and outside the UK are charged without UK VAT. Import VAT or duty may apply in your country.
Honda 39mm (Standard Size) Piston suitable for use with Z50R (82 - 87)

Genuine Honda Part More often than not, this part will arrive in the original Honda packaging. Sometimes we receive these Honda parts in multi-packs, and in those cases it's not always possible to send the original Honda packaging.

Honda 39mm (Standard Size) Piston suitable for use with Z50R (82 - 87)

P/N: 13101-GB2-010

In stock

 Z50R note: This piston is compatible with Z50R made between 1982 - 1987.

£78.00 inc VAT £65.00 ex VAT Only UK customers pay UK VAT (20%). Orders to the Channel Islands and outside the UK are charged without UK VAT. Import VAT or duty may apply in your country.
Honda 39mm (Standard Size) Piston suitable for use with Z50R (80 - 81)

Genuine Honda Part More often than not, this part will arrive in the original Honda packaging. Sometimes we receive these Honda parts in multi-packs, and in those cases it's not always possible to send the original Honda packaging.

Honda 39mm (Standard Size) Piston suitable for use with Z50R (80 - 81)

P/N: 13101-124-831

In stock

 Z50R note: This piston is compatible with Z50R made between 1980 - 1981.

£91.20 inc VAT £76.00 ex VAT Only UK customers pay UK VAT (20%). Orders to the Channel Islands and outside the UK are charged without UK VAT. Import VAT or duty may apply in your country.
