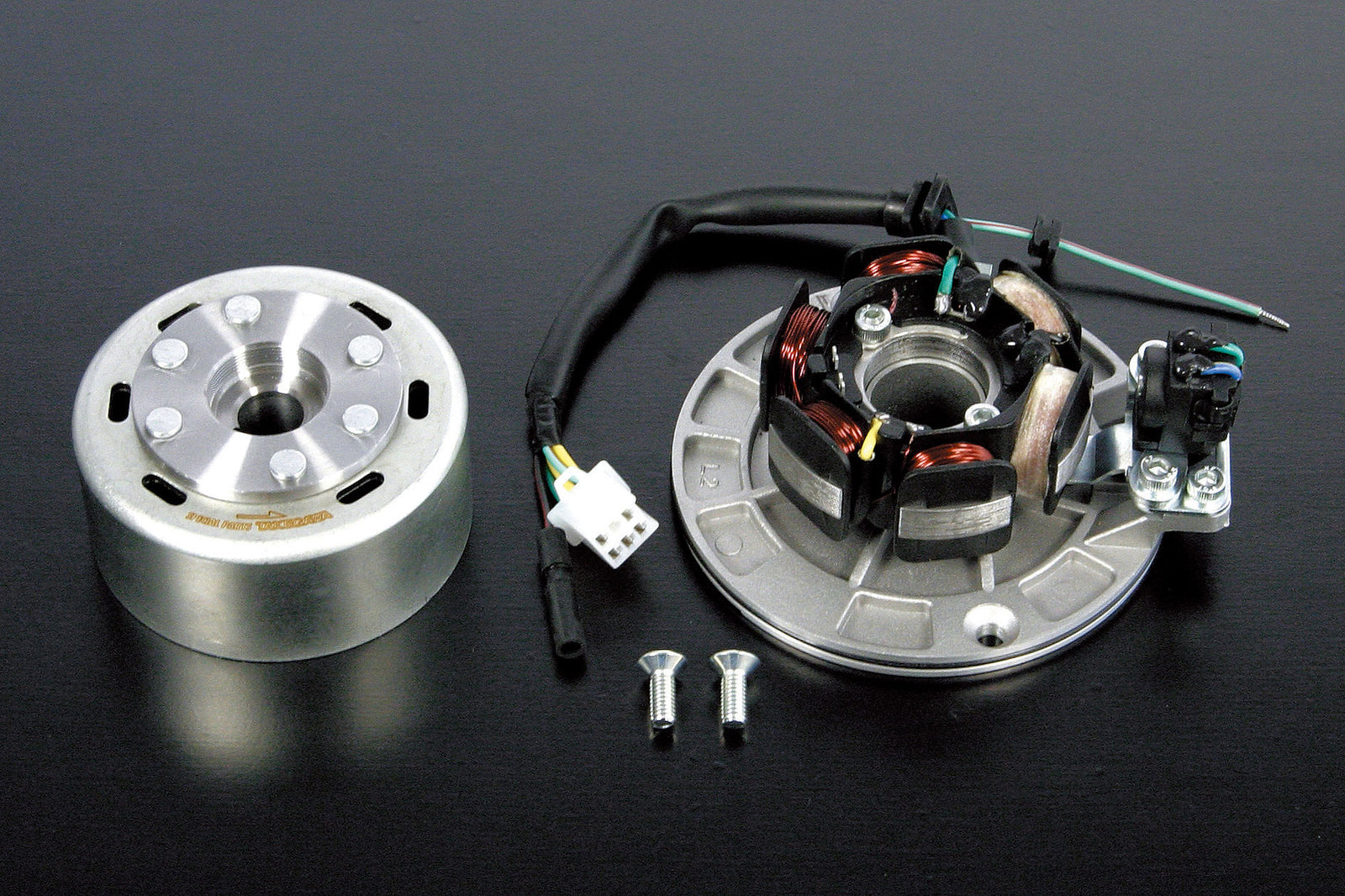

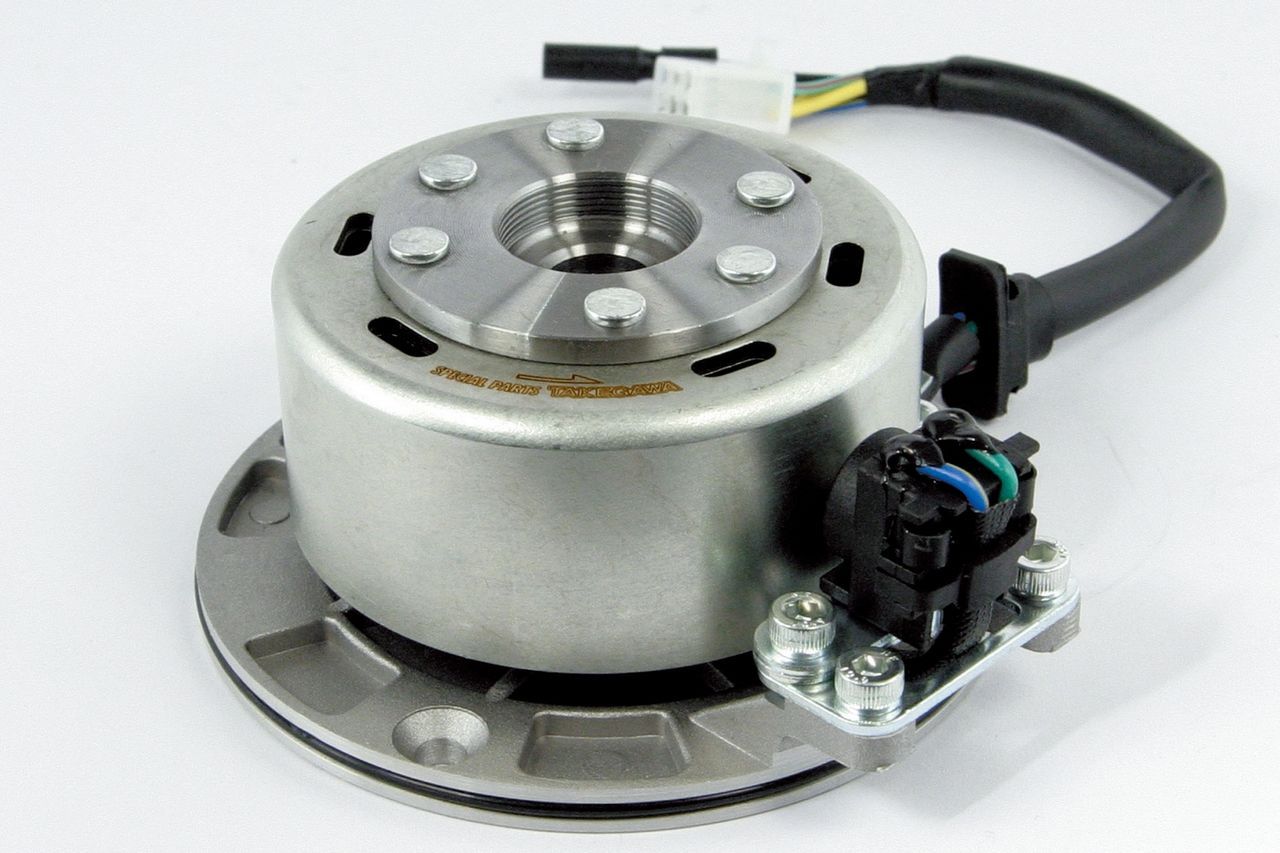

Takegawa Outer Rotor Kit suitable for use with Z50J 12V

Size: Outer diameter 88mm / inner diameter 77mm
Weight: 536g

■Details
Ease of use of SP Takegawa rotors
The Super Street Outer Rotor Kit has been developed to provide both ease of use and improved performance without sacrificing the performance of the lights. It is suitable for all kinds of users with different driving styles and tunings.

Key points of SP Takegawa rotors
The rotor body uses a medium size flywheel that is 50% lighter than the stock one, which reduces the load on the crankshaft and provides easy riding and sufficient power generation.Moreover, the position of the pickup was reviewed, and the best ignition timing corresponding to various big bore kits made by SP Takegawa was set, and high output performance and response were made possible.

Lightweight outer rotor kit with the largest coil size in its class
The primary side voltage is strengthened to about 1.5 times compared with the stock by equipping two ignition coils to one stock coil, and high ignition energy is generated even in the high rotation range.By equipping 4 coils for lighting and charging, AC power output for headlights can be prioritized and lights can be maintained at the same brightness as stock.In addition, the output of the DC power supply for charging is also capable of the level of charge required to compensate for consumption during driving.

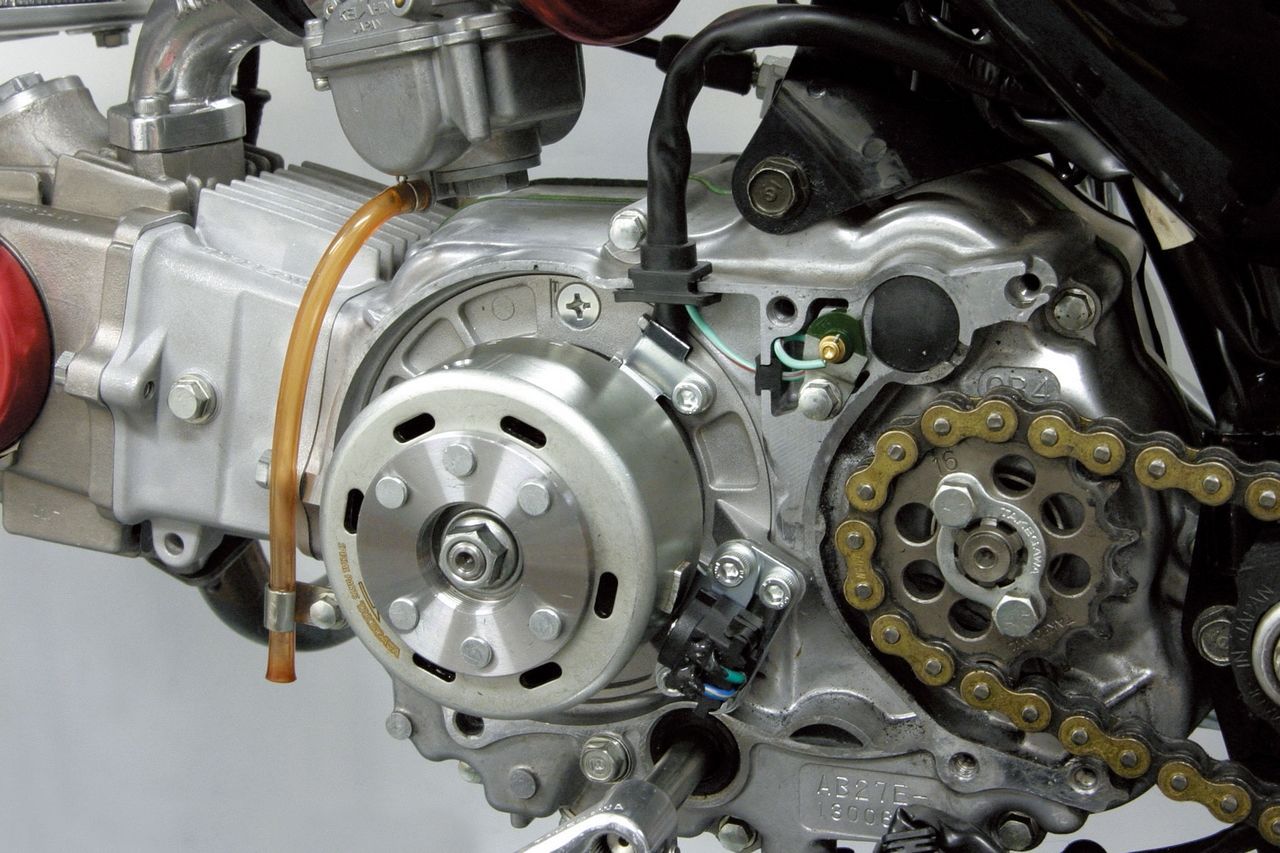

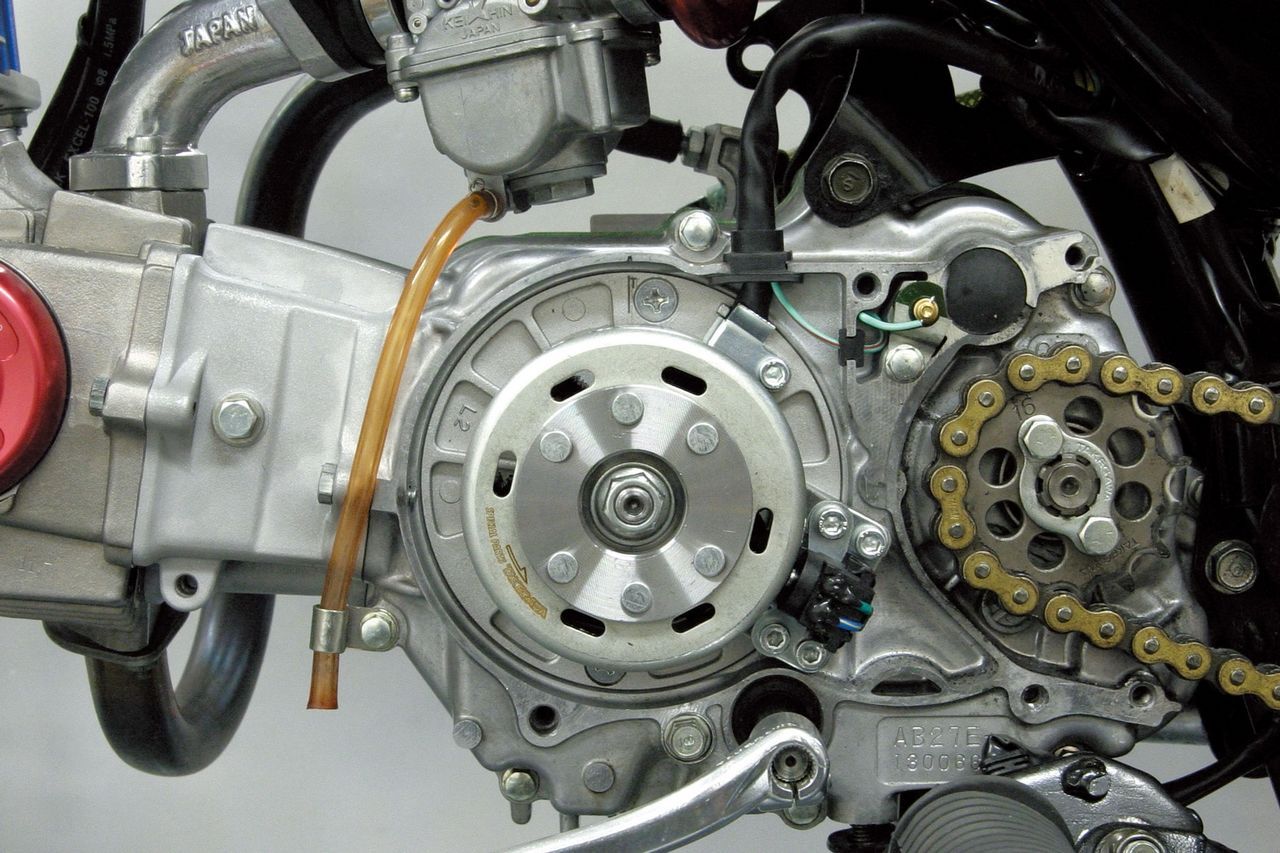

Easy installation with no modification or additional parts required
Other companies' outer rotor kits may require modification of parts such as wiring and ignition coil.

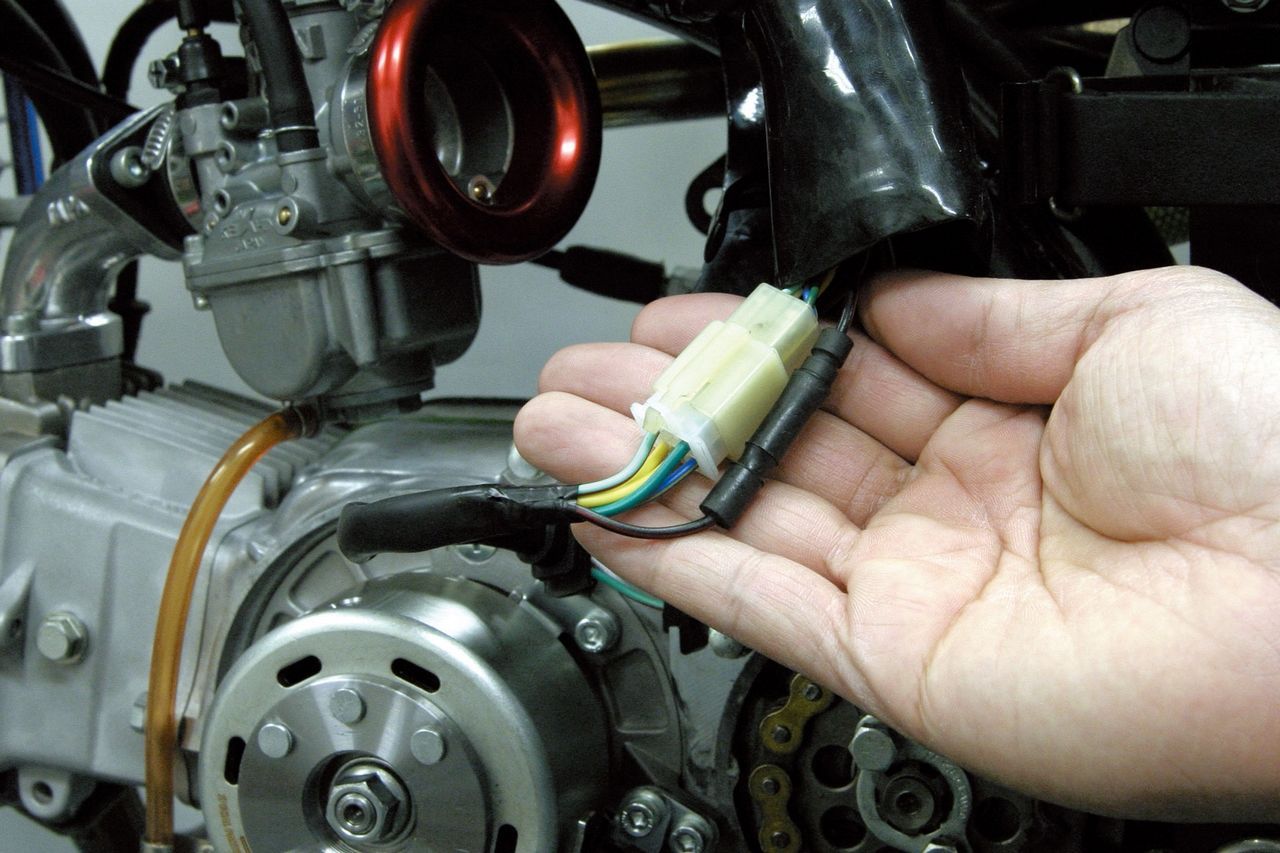

SP Takegawa's Outer Rotor Kit is easy to install, simply replace the stock wiring.

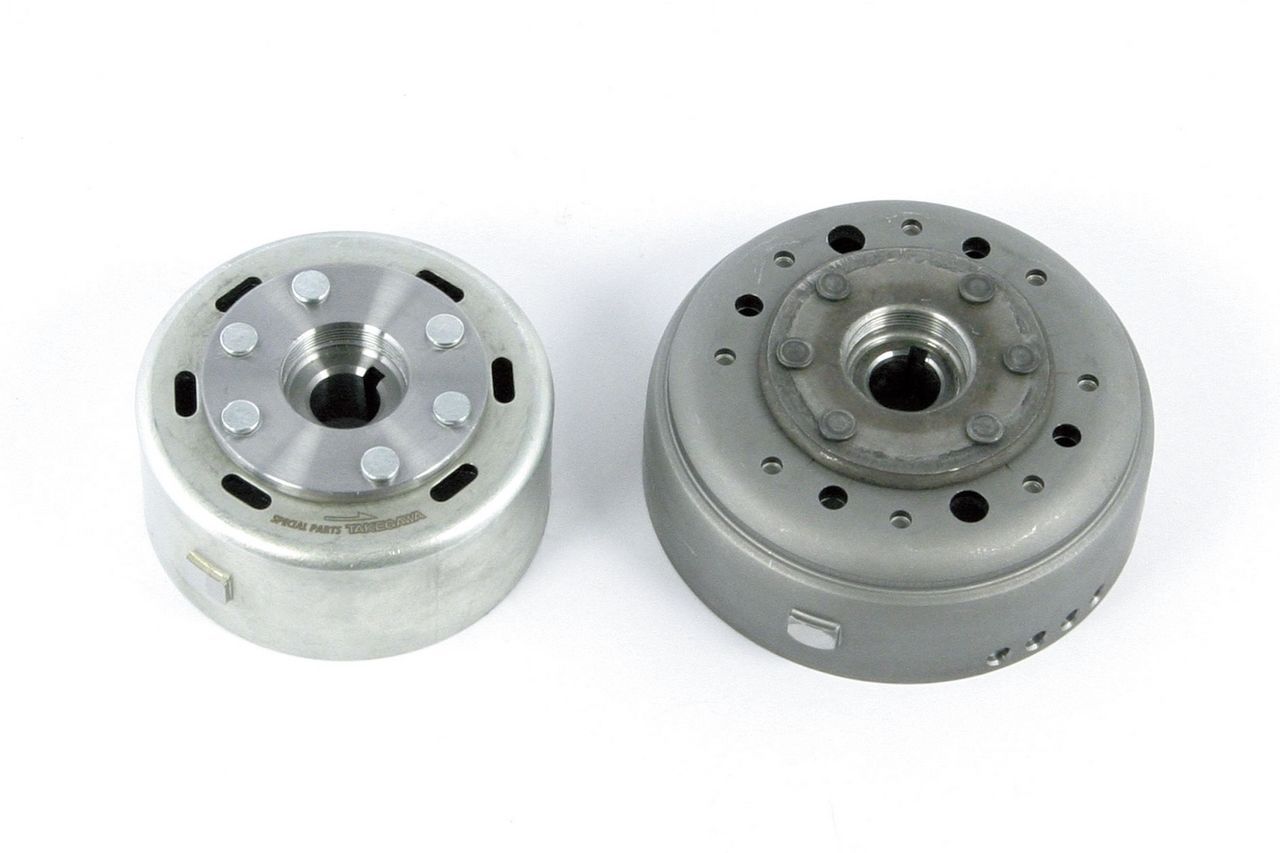

■Comparison of stock rotors and SP Takegawa rotors

・Stock rotors (DENSO)
Rotor outer diameter: 110mm
Rotor I.D.:87mm
Weight: 1017g

・SP Takegawa Rotors
Rotor outer diameter: 88mm
Rotor I.D.:77mm
Weight: 536g

MONKEY
12V (AB27-1000001-1899999)
MONKEY
12V (Z50J-2000001-)
GORILLA
12V (Z50J-2000001-)
GORILLA
12V (AB27-1000001-1899999)
